eLi RGBW

eLi RGBW

  1. Home
  2. Architectural
  3. eLi RGBW

717 – 1,843 lm/m

20/40 W/m

Highlight organic architecture through elegant, versatile and reliable linear illumination.

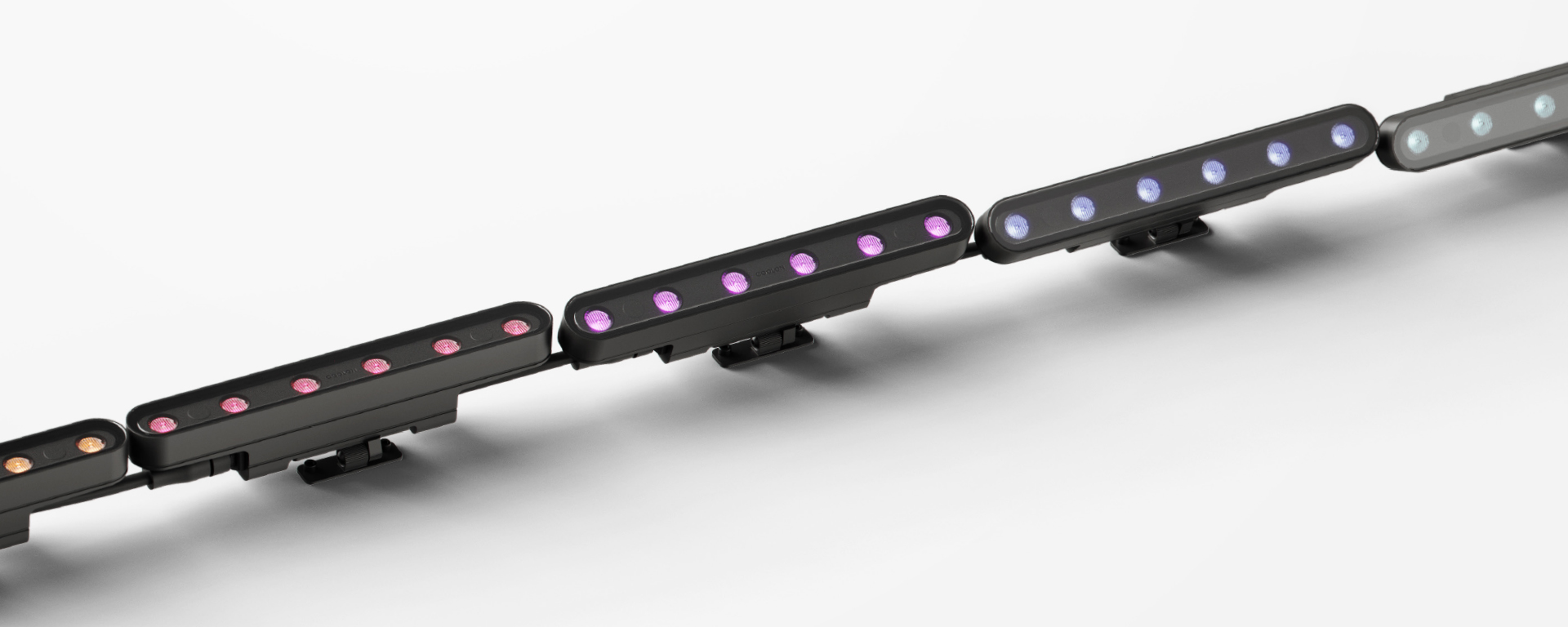

eLi RGBW is a modular linear luminaire precisely engineered to follow the fluidity of organic architecture with vibrant, full-color illumination. It offers independent control of each module, empowering designers to craft highly dynamic effects and intricate lightscapes with pixel-level precision. It delivers consistent, high-quality illumination for challenging exterior applications, combining elegant adaptability with engineering-grade reliability. A range of precision optics and mounting accessories supports accurate beam control for wall washing or grazing.

Designed for

  • Wall Grazing/Washing
  • Feature Facade Lighting
  • Bridge and Tunnel Illumination
  • Public Spaces

Key features

  • DMX or Casambi Control
  • Individual Pixel Control
  • Up to 60m runs from a central feed
  • Custom body colours available
  • IP66/IK10 and marine grade construction

20W/m or 40W/m
DMX or CASAMBI Control
Individual Pixel Control
IP66 / IK10

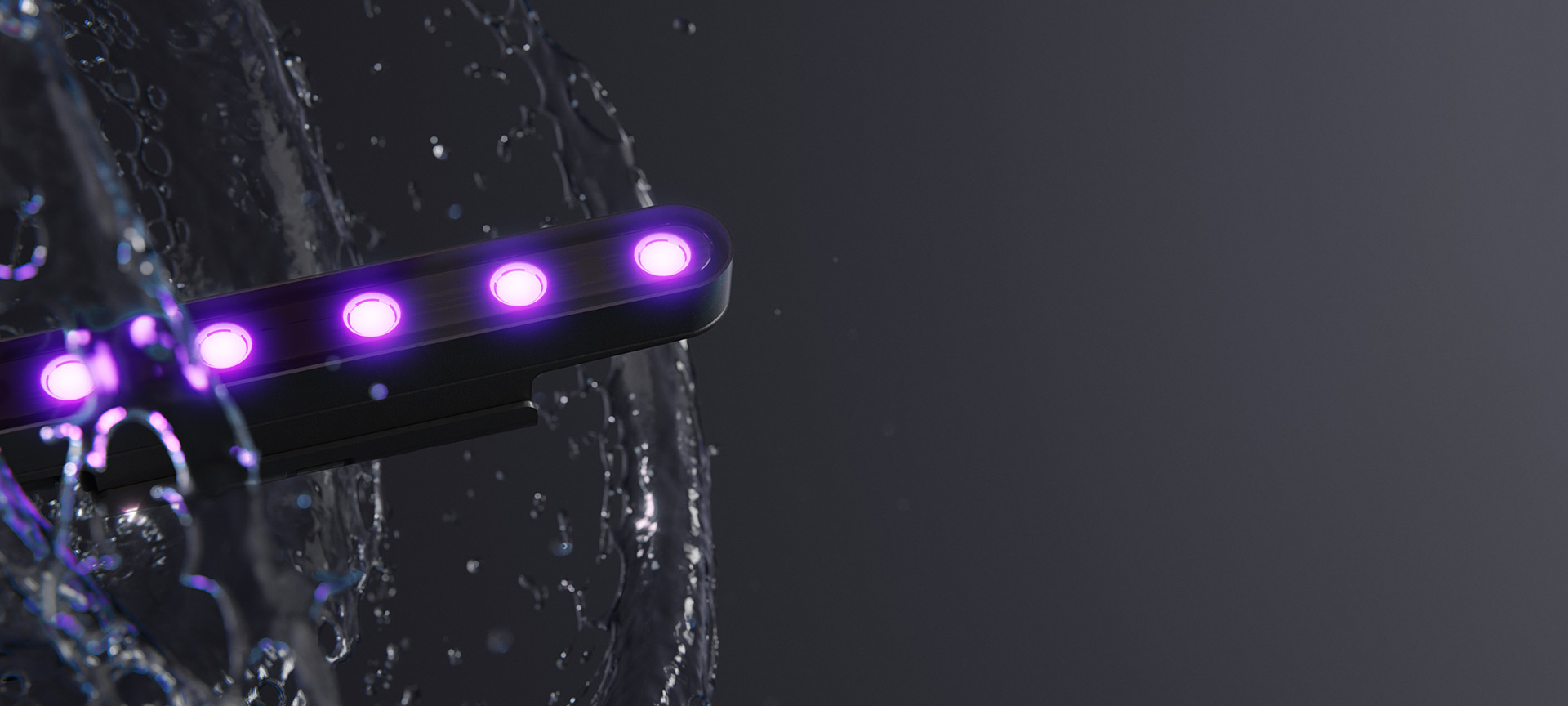

Peace of Mind, Built In

eLi's signature build quality and proven encapsulation technology craft an outdoor solution of unmatched resilience and reliability. Its robustness ensures unwavering performance in the most demanding applications and environments.

Versatility

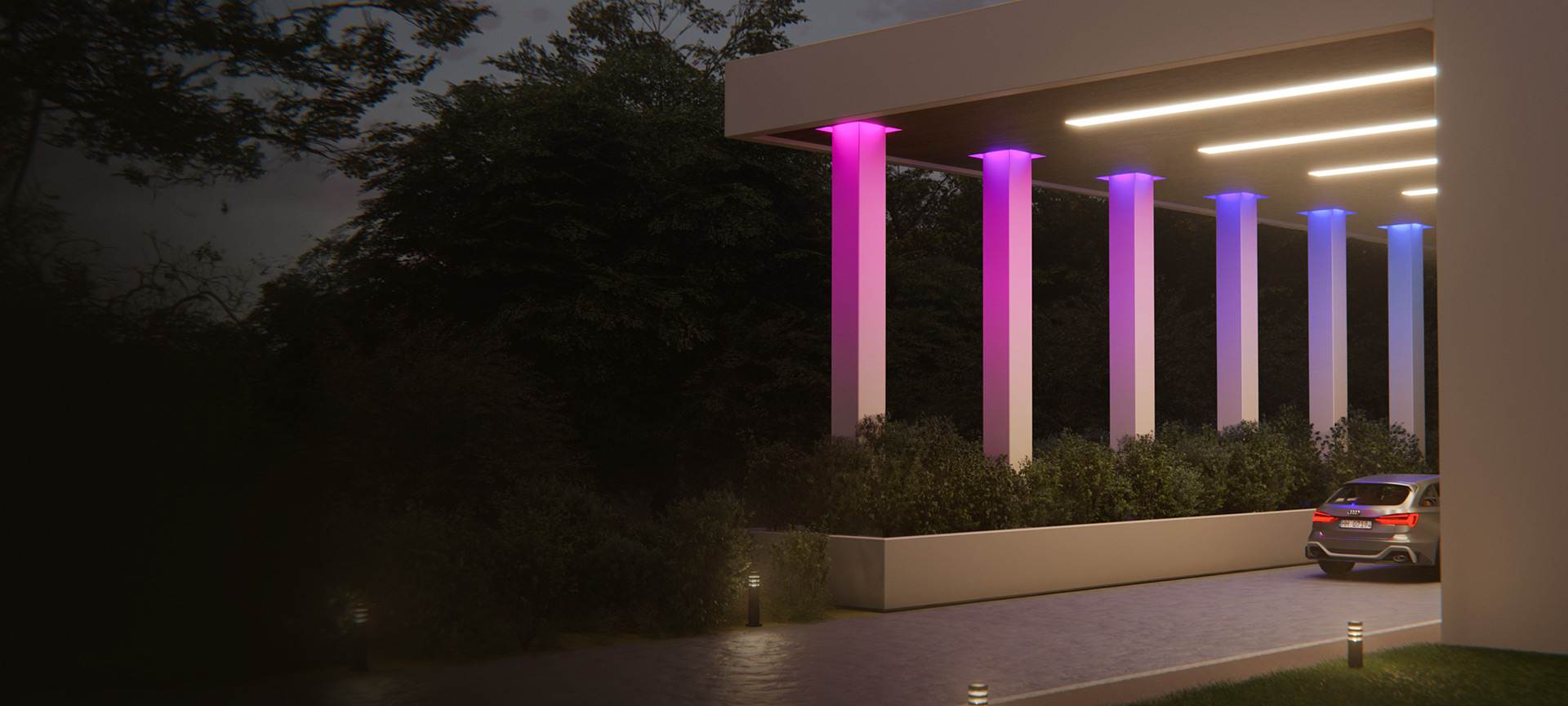

Unlock a spectrum of creative possibilities. eLi RGBW brings vibrant, full-colour illumination with independent module control, empowering highly dynamic effects and intricate lightscapes. Its elegant adaptability extends to a range of precision optics and seamless integration into any architectural form, supported by simple control options.

Seamless Long Runs, Simplified

Coolon’s innovative architecture enables seamless runs up to 60 meters (total system length from central feed) by reducing voltage drop and maintaining uniform brightness. Longer runs streamline design and installation, significantly reducing time for unprecedented ease and efficiency.

Self-Addressing

Manual on-site addressing during installation is no longer required with Coolon’s clever technology. The self-addressing luminaires automatically enumerate DMX channels in a consecutive manner when connected.

This technology seamlessly recognises sequentially positioned luminaires in eli RGBW installations and requires no unique identifiers.

Matrix White

The Matrix White algorithm physically drives RGBW LEDs from an RGB control signal. It does this by calculating when to replace a combination of primary colours (red, green and blue) with a pure white light source. This feature presents users with the following advantages:

  • Superior colour rendering and appearance
  • Cost savings, as more luminaires can be controlled by each DMX universe (170 RGBW luminaires, versus 128 without Matrix White)
  • Utilise dedicated white output instead of relying on additive RGB (dirty) white
  • Reduced power consumption, as the LED chip is being utilised effectively

5 Year Warranty

Coolon luminaires are covered by a solid comprehensive manufacturer’s warranty that covers a range of possible defects and performance parameters throughout the duration of the warranty period.

Australian Made

Our products are designed and manufactured in Australia. Engineered to perfection, using only the highest quality components and highly skilled labour, each luminaire is assembled and thoroughly tested to ensure that it exceeds the highest standards.
