eLi Product Family

eLi Product Family

  1. Home
  2. Architectural
  3. eLi Product Family

627 – 2,440 lm/m

20/40 W/m

The eLi family is a modular linear luminaire system precisely engineered to follow the fluidity of organic architecture. Designed to deliver consistent, high-quality illumination for challenging exterior applications, its semi-rigid body ensures seamless, elegant integration into curved façades and sculptural forms, backed by engineering-grade reliability.

The system offers complete versatility for designers: the eLi SW variant provides high-quality white illumination, while the eLi RGBW variant delivers vibrant, full-colour illumination with independent, pixel-level control for crafting highly dynamic effects and intricate lightscapes. A range of precision optics supports accurate beam control for wall washing or grazing across the entire product family.

eLi

2026 IES VIC/TAS Award of Excellence: Technology

Designed for

  • Wall Grazing/Washing
  • Feature Facade Lighting
  • Landscape Accents
  • Bridge and Tunnel Illumination
  • Public Spaces

Key features

  • DALI-2 (RGBW/SW), DMX or Casambi Control
  • Custom body colours available
  • IP66/IP67/IK10 and marine grade construction
  • Up to 300 m total run length from a single 24 to 54 VDC SELV feed

Why Curves Need a Different Kind of Linear

Straight luminaires turn a curve into a series of hotspots, gaps and awkward transitions. Flexible strip follows the line, but rarely has the output, durability or run length an exterior facade demands.

How eLi Follows a Curve

  • Semi-rigid: rigid 298 mm modules joined by flexible links
  • Constant 50 mm LED pitch through every bend
  • Even graze with no scalloping or gaps at the joints
  • Wraps columns from 250 mm in diameter

eLi Family

Seamlessly Elegant:
Custom Body Designs

eLi ships in black as standard. For projects where the luminaire should disappear into the facade, or become part of it, bodies can be finished in custom colours to match the architecture, over the same marine grade construction.

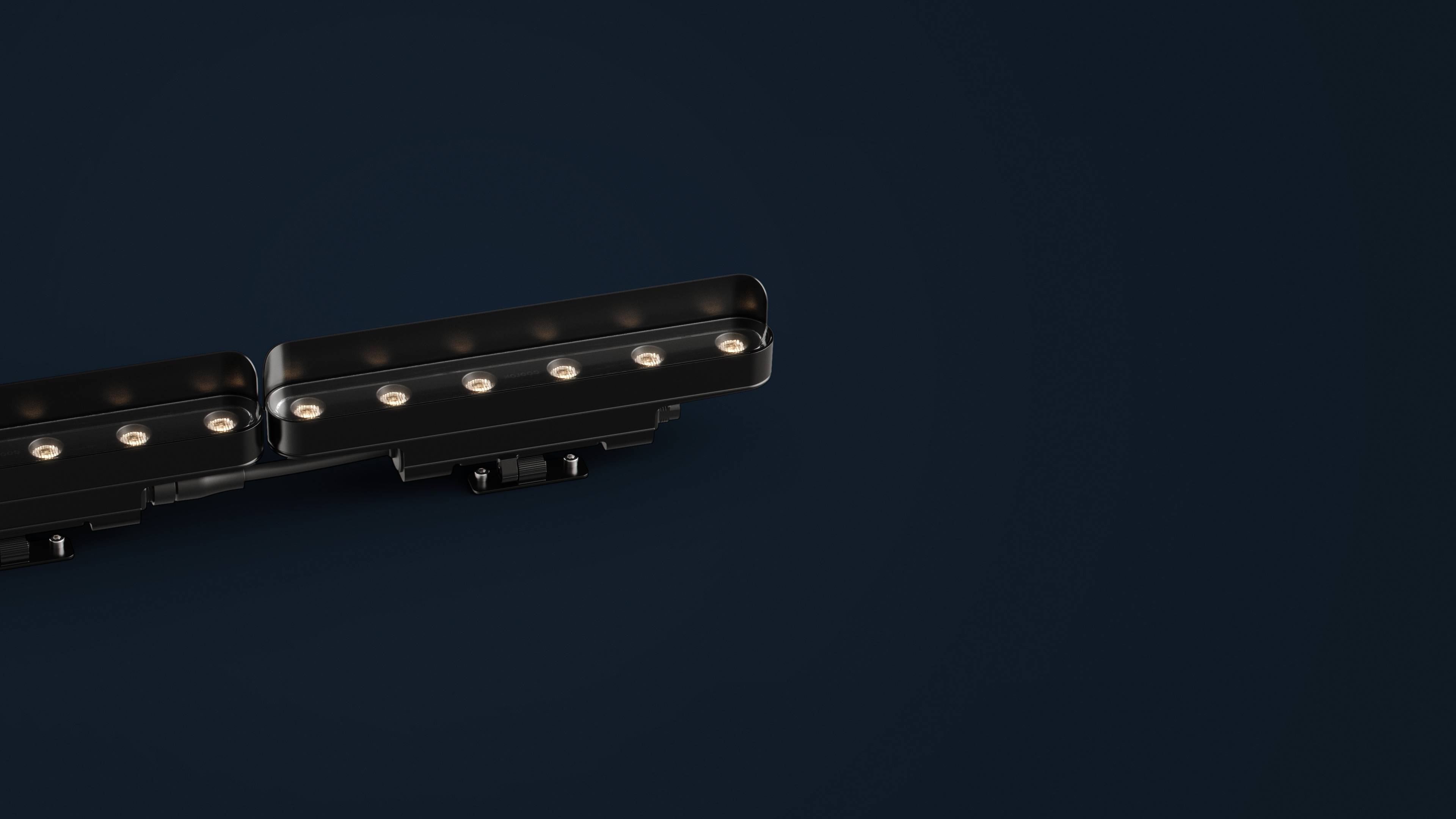

Designed for Comfort: Glare Louvre

An optional glare louvre shields the light source from where it isn't needed, keeping the light on the surface and out of view.

Reliable Performance:
Built for Enduring Beauty

Robust Construction: Cast Aluminium body, Anodised & Powder Coated (Marine Grade finish).

Proven Encapsulation Technology: Ensures long-term durability and protection.

Protection against the elements: IP66/IP67 (dust tight, protected against water jets and temporary submersion) and IK10 impact resistance.

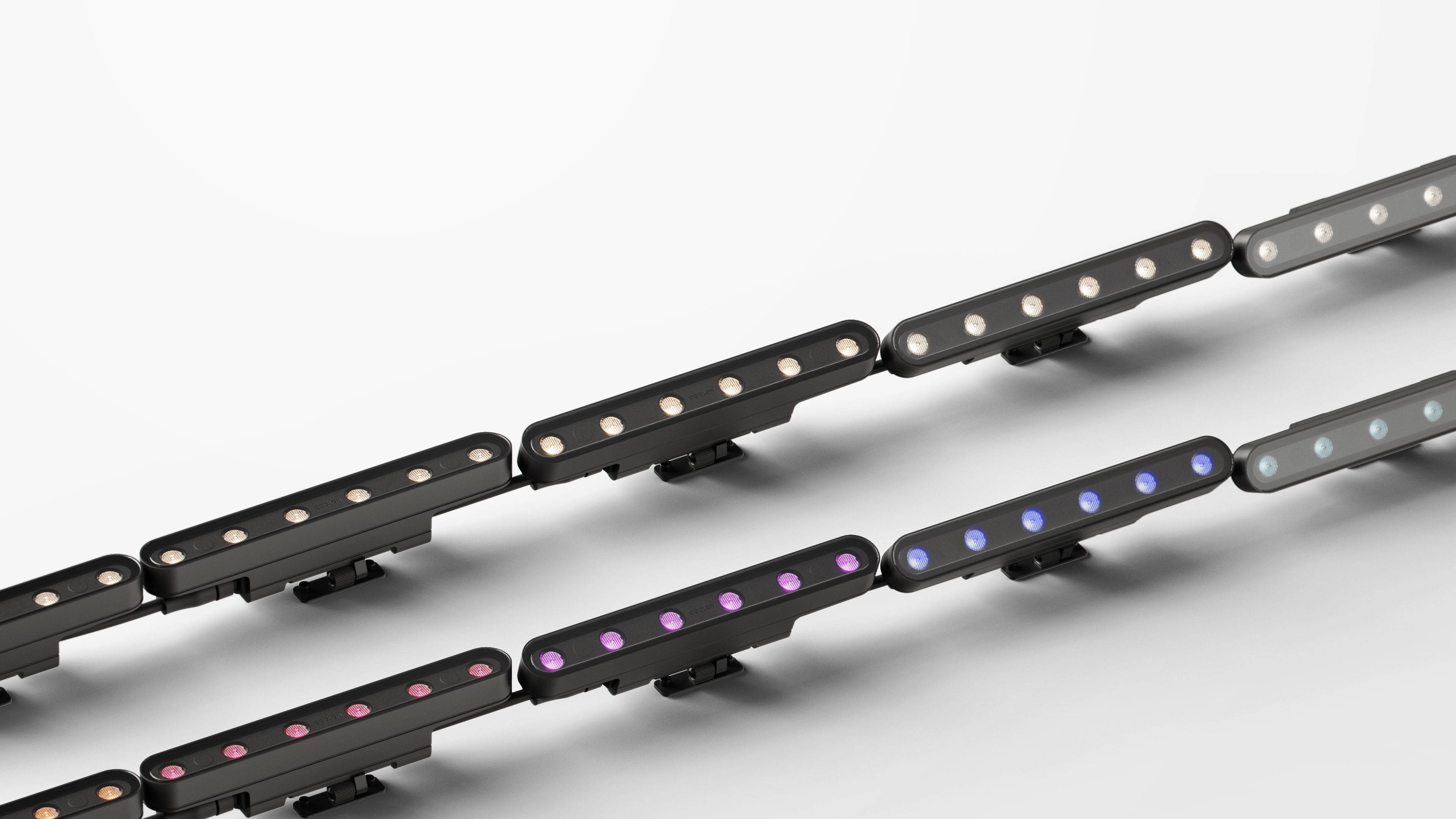

Built to Stay in Service

eLi is repairable at module level. A failure is one 300 mm module that unplugs and is replaced, not a full run and a scaffold. eLi SW is rated L90B10 above 60,000 hours, eLi RGBW L70 at 50,000 hours.

Key Applications:
Where eLi Shines

Highlighting Architectural features:

  • Façade accents
  • Wall washing
  • Wall grazing

Infrastructure projects:

  • Bridges
  • Underpasses
  • Public transport stations

Public spaces:

  • Piers
  • Walkways
  • Promenades

Long Runs from a Single Feed

Every luminaire has its own driver, so brightness and colour stay identical from the first module to the last.

  eLi 20 W/m eLi 40 W/m
Luminaires per feed 100 luminaires 50 luminaires
Illuminated length per feed 30 metres 15 metres
Illuminated length per entry point 60 metres 30 metres
Total bus length per feed up to 300 metres up to 300 metres

Controls and Wiring

eLi SW and eLi RGBW run on DALI, DMX or Casambi through the eLi controller, with power and data on the same cable. eLi SW can also run with no control. eLi RGBW adds individual pixel control over DMX and Casambi.

Mounting and Dimensions

eLi mounts on a low profile surface bracket, or on a rotating bracket (type A or B) to aim the graze. An optional glare shield fits to the rotating bracket. Full dimensions and mounting footprints are below and in the installation manual.

5 Year Warranty

Coolon luminaires are covered by a solid comprehensive manufacturer’s warranty that covers a range of possible defects and performance parameters throughout the duration of the warranty period.

Australian Made

Our products are designed and manufactured in Australia. Engineered to perfection, using only the highest quality components and highly skilled labour, each luminaire is assembled and thoroughly tested to ensure that it exceeds the highest standards.
