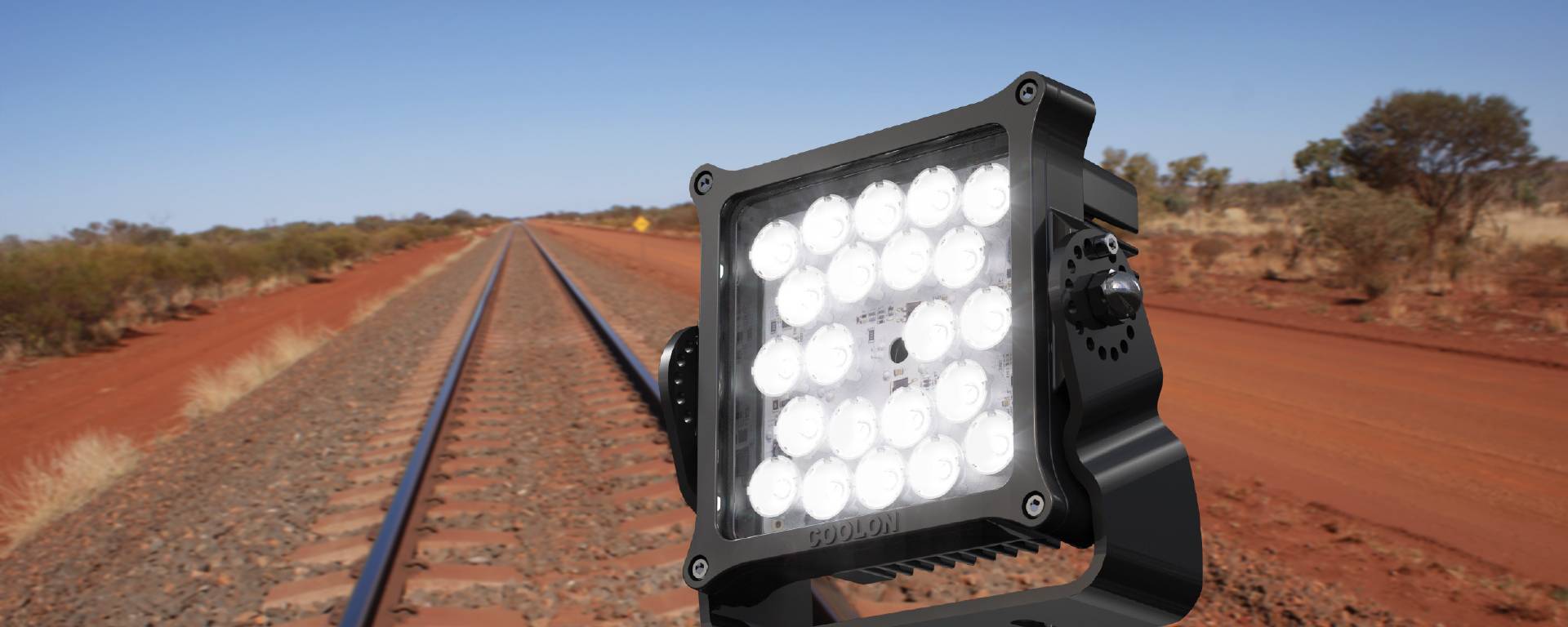

CP22 - SuperBeam

Peak Cd Intensity: 214200 Cd

Power: 60W

Equipped with the latest in LED lighting technology, coupled with state of the art optical innovations, the CP22 forms an ideal luminaire for long distance, narrow beam illumination in a low power configuration. Its robust built body enables the CP22 for use in the harshest environments enduring continuous exposure to vibration and elements.

Download CP22 - SuperBeam Specification Sheet (PDF)

Peak Intensity
of > 200,000Cd

Created specifically to comply with AS7531.4-2007 Australian Standard for Railway Rolling Stock Lighting and Rolling Stock Visibility. Headlight arrangements on track machined able to travel at speeds greater than 60km/h and weighing less than 20 tonnes gross mass shall produce a peak intensity of at least 200,000 candella.

Product Benefits

LONG useful operating LIFE (L70)

This luminaire’s life is rated at 50,000 hours to 70% residual light output.

Instant ON/OFF

LEDs do not require warm up. Instant on to 100% output translates to no downtime, improved safety and the ability to utilize sensor switching to significantly save energy.

Cool surface temperature

Solid state luminaires are designed to dissipate the heat generated by the LEDs. Due to this, the LED fittings have a much lower surface temperature than traditional HID equivalents.

High IP rating - IP66

This product is high pressure washable.

Unrestricted Burning Position

LED luminaires are more flexible when it comes to aiming angles and orientation.

Extra Low Voltage Operation

Eliminates the danger of exposure to electric shock.

3 years full/solid Warranty

All Coolon Industrial Products are backed by a Solid 3 Year Manufacturer’s Warranty.

Proudly Made In Australia

Coolon products are proudly designed and manufactured in Australia.

Specifications

Make/Model
Model CP22
Number of LEDs 22
Optical Characteristics
Peak Cd Intensity 214200 Cd
CCT 5000K – 6200K
CRI > 80
Electrical Characteristics (Luminaire)
Power Consumption 58.8W Typical, 65W Start
Nominal Voltage 24VDC
Voltage Range 12 - 30VDC
Cable Type UL2095, 16 AWG x 2C Braid PVC, UV Resistant
Cable Diameter 7.5mm
Cable Length 2m
Environmental
IP Rating IP66
Impact Rating IK09
Salt Spray Tested Yes
Operating Temp. Range -30 – 50°C
Thermal Management Type Active/Continuous
Expected Lifespan 50,000 Hours to 70% Brightness
Material Composition (Body) LM6 Aluminium Alloy (<0.1% copper content)
Material Composition (Optics) PMMA
Material Composition (Cover) Toughened Glass - Standard
Polycarbonate and Grilamid TR90 options are available upon request
Mounting/Bracket Type FPB (Standard)
MPB (Optional)
Angle Adjustment 11.25° Steps
Weight/Packaging
Luminaire Weight 3.5kg
Bracket Weight 1.0kg (FPB), 1.8kg (MPB)
Packaging Dimensions (CP24) 280 x 280 x 140mm
Packaged Weight (CP24) 6.4kg (MPB)
Packaging Dimensions (PSU) 400 x 280 x 180mm
Packaged Weight (PSU) 5.0kg
Warranty
Warranty Standard 3 Year Warranty
Premium 5 Year Warranty

Downloads

  Title Description File Size Download
CP22 - SuperBeam CP22 - SuperBeam Full CP22 - SuperBeam specifications - PDF format 820 KB   DOWNLOAD
CP22 - SuperBeam (Spanish) CP22 - SuperBeam (Spanish) Full CP22 - SuperBeam specifications in Spanish - PDF format 824 KB   DOWNLOAD
CP22 - SuperBeam Manual CP22 - SuperBeam Manual CP22 - SuperBeam installation instructions - PDF format 150 KB   DOWNLOAD
