DALI Logic IP

Supply Voltage

24 - 48VDC

Control Protocol

DALI Standard Compliant

Coolon DALI LOGIC IP is the world’s most reliable DALI PWM outdoor controller for architectural applications. Designed to complement Coolon architectural LED fixtures range for maximum performance in a robust and easy to mount enclosure.

Use DALI LOGIC IP to interface between a remote standard DALI source and LED lights fitted with Coolon brightness control input. The fittings and external power supply are conveniently connected using screw terminals on the output side. Input and output screw terminals are also provided in the interface side for DALI bus.

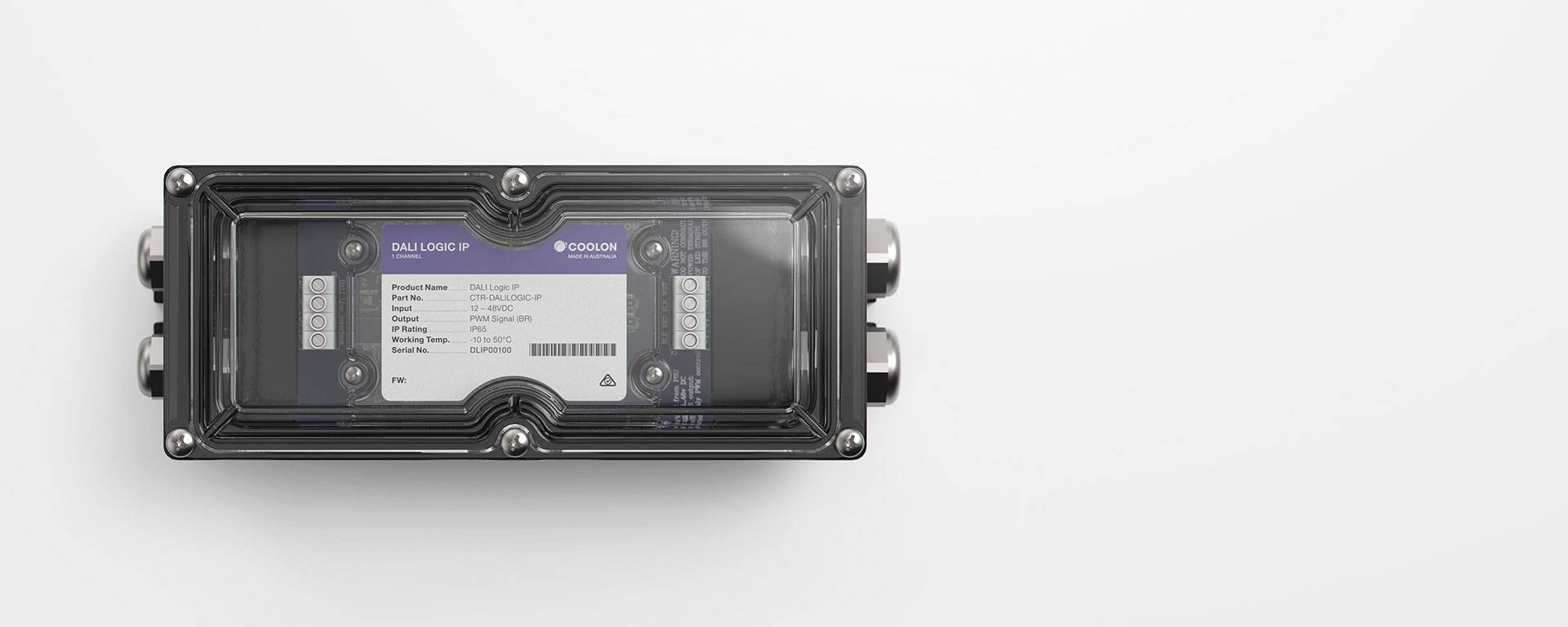

Durable

DALI LOGIC IP driver is designed to suit outdoor DALI controlled LED installations. Robust housing design, suitable for inclement weather.

Reliable

Coolon LED drivers are designed and built to the highest standards and offer high-performance, reliability and efficiency supported by our 3 years standard warranty or up to 5 years extensive warranty.

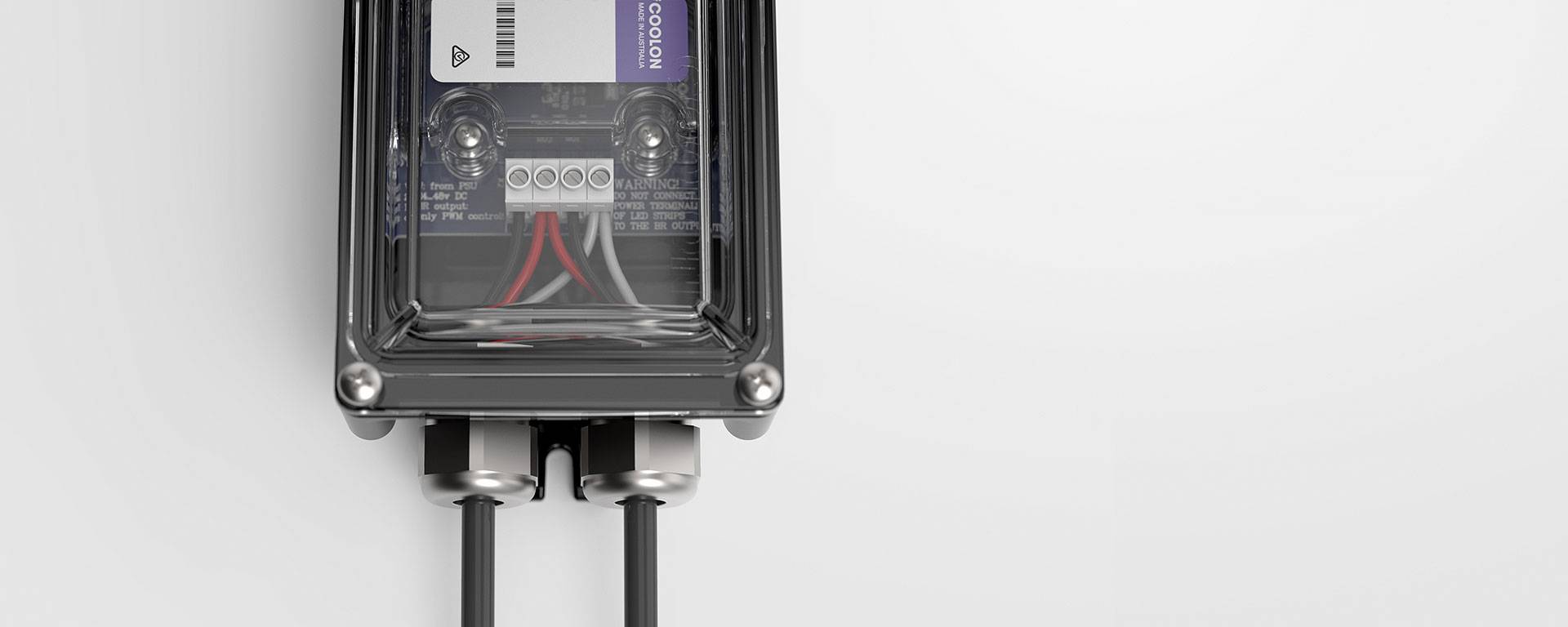

Simple

Easy wiring using cable glands and screw terminals, making onsite installations free of specialized tools or crimping.

Convenient

It will turn suitable LED luminaires into a remote dimmable fitting via DALI control. Highly capable, DALI LOGIC IP will dim luminaries with fitted PWM control input from 1 ~ 100% range.

Product Benefits

IP66

Protected from total dust ingress. Protected from high pressure water jets from any direction.

Warranty

All Coolon Architectural Products are backed by a Solid 3 Year Manufacturer’s Warranty.

Made in Australia

Coolon products are proudly designed and manufactured in Australia.

Specifications

DALI Logic IP
Product Code CTR-DALILOGIC-IP
Description DALI to 1 Channel PWM Brightness Outdoor Controller
Device Type Standard DALI input (addressable), push-pull PWM control output (suitable for LED products with inbuilt brightness control line)
Control Protocol DALI Standard Compliant
Solid State Output PWM signal, Push-pull
PWM Frequency 75 Hz
Dimming Range 1 ~ 100%
Load/ Supply Voltage 24 ~ 48V DC
Power Consumption 0.25W (No Load)
Load Voltage 24 ~ 48V DC
Enclosure Aluminium die-cast
IP Rating IP65
Working Temperature -10 ~ 60°C
Connection Screw terminals

Downloads

  Title Description File Size Download
DALI Logic IP DALI Logic IP Full DALI Logic IP specifications - PDF format 941 KB   DOWNLOAD
